Infrared Thermography

Scanning system for monitoring rotary kilns

IRT KilnMonitor® is the full featured computer system that allows you to monitor, process and trace data from several kilns at once. It includes:

  • Scanners control module for real-time temperature acquisition;
  • Input/output control module;
  • Kiln visualization module (2D and 3D);
  • Thermographic analysis module;
  • Historical storage module.

IRT KilnMonitor® is the industry-leading environment for real-time kiln data acquisition, analysis and control.


Several kilns

Kiln number monitored on one computer is only limited by the hardware performance.

Several scanners per kiln

Combinations of several scanners and pyrometers.

Kiln shell infrared image

Temperature measurement at any kiln shell surface spot. Updated after every full rotation.

To top

Bricks and coating thickness calculation

Bricks and coating thickness is estimated using the actual kiln shell temperatures and the kiln development history stored in the database.

To top

2D infrared image display

  • Selectable color palette;
  • Selectable temperature range: preset, auto or custom;
  • Rulers in the real kiln coordinates;
  • Flying spot reader: temperature at the spot, position of the spot, brick thickness, coating thickness;
  • Maximum kiln shell temperature is displayed;
  • Areas zoom in a separate window, unlimited number or zoomed areas.

To top

Kiln design display

Kiln parts with different colors and information on every part. Brick refractory zones. Shadow zones.

To top

Kiln envelope profile

  • Permissible envelope profile with the possibility to define individual limits for different kiln zones. (Green);
  • Actual envelope profile. (Gray; parts outside permissible range - Red);
  • Alarm zones;
  • Last scanned line;
  • Envelope profile is leveled with the 2D image and is with a cursor to easily see image to profile correspondence.

To top


Trending for spots, lines or areas of the kiln shell (spot temperature value, line and area minimum, maximum and average temperature). For the real-time data and for the historical data.

To top

History reference

Possibility to recall any kiln state from the history and display it on the screen for reference: as kiln shell image, as envelope profile or as a difference map between the current and the history image.

To top

Image trend

History forms one image where every line represent one record in the history.

To top

Worst case image

Image that shows maximum temperature at every kiln shell spot over some selectable period of time.

To top


  • On-screen display, beeper, external hardware alarms and OPC alarms;
  • Alarms on exceeding reference envelope profile limits – upper and lower bounds;
  • Alarm zones: upper bound, lower bound, range. Zone number is not limited;
  • False alarm threshold.

To top

Ring diagram

Brick and coating thickness of the complete kiln. Brick and coating thickness at kiln section. Brick and coating thickness at kiln interval. Colorized: greed-yellow-red.

To top

Analysis objects on the 2D image

All analysis objects are with labels containing selectable information.

  • Spots: temperature, position, brick thickness, coating thickness, averaging. Unlimited number of spot objects.
  • Slices (kiln sections): min, max, average temperature, brick thickness, coating thickness, averaging. Unlimited number of slice objects.
  • Intervals: min, max, average temperature, brick thickness, coating thickness, averaging. Unlimited number of interval objects.
  • Lines: min, max, average temperature, averaging. Unlimited number of line objects.
  • Areas: min, max, average temperature, averaging. Unlimited number of area objects.

To top

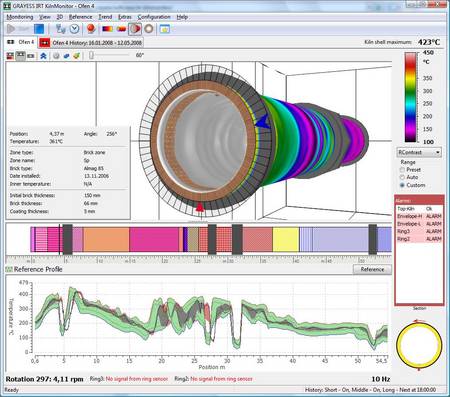

3D kiln display

  • Kiln “pipe” with infrared image on the surface. Kiln is rotating with the real speed.
  • Rings and other shadow zones.
  • Position of the top-kiln.
  • Real coordinates ruler with the kiln refractory and shadow zones structure.
  • Brick refractory with calculated thickness.
  • Coating with calculated thickness.
  • Possibility to view from different angles and look inside the kiln.
  • Section view with detailed kiln information at the section. End view.
  • Split by refractory zones view (also works in section and end views).
  • Colorized refractory zones.

To top

Windows arrangement

  • All combinations of 2D and 3D windows.
  • Possibility to save the current arrangement as the standard and quickly recall it later.

To top


  • Kiln state (scanned infrared image, bricks and coating thickness, alarm state) is continuously recorded in a database.
  • Three types of history: short-term with recording every 5 minutes, middle-term with recording every 1 hour and long-term with user-defined intervals of recording.
  • Possibility to load any saved kiln state by date/time and to see and analyze it with all available views (2D and 3D). Player controls: first, last, next, previous (2D and 3D). Fast playback with selectable speed (only 2D).

To top

Client-server model

  • Server is the computer collecting data from the scanners. Client is any computer in the local network (or as an option – in the Internet).
  • Kiln information can be visualized in the same way (in 2D and 3D) on the server and on any client computer in the network.
  • Client-server model is implemented using OPC.

To top


  • OPC Alarms and Events protocol. Alarms are published for any OPC client.
  • OPC Data Access protocol. Current kiln state is published for any OPC client: infrared image, kiln temperature min and max, bricks thickness minimum, coating thickness maximum, envelope profile and other information.

To top


  • Events log: monitoring started, monitoring stopped, kiln configuration changed, scanner communication.
  • Alarms log: an alarm condition changed, alarm condition is reset by operator.
